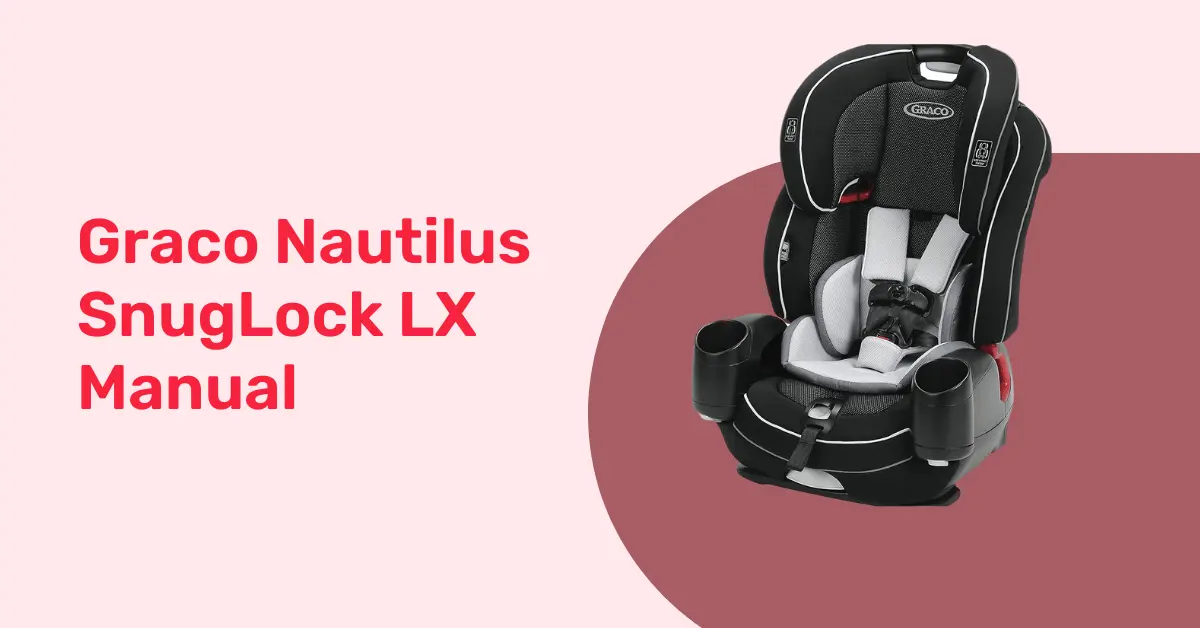

Graco Nautilus SnugLock LX Manual (PDF + Smart Setup Tips)
Lost the manual? Not sure how SnugLock works or when to remove the harness?
No worries. This page gives you everything you need to safely install and use your Graco Nautilus SnugLock LX car seat from toddler to big kid.
Scroll down to download the official PDF manual or read through our setup tips. Whether you’re using it in harness mode or booster mode we’ve got your back!
Download the Graco Nautilus SnugLock LX Manual (PDF)
Product Overview
The Graco Nautilus SnugLock LX is a 3-in-1 forward-facing car seat that grows with your child through toddlerhood to youth. It includes SnugLock® Technology, which allows for a simple and secure seat belt installation in under one minute.
It’s a solid pick for parents looking for long-lasting use, enhanced safety, and easy transitions between stages.
Key Features at a Glance
- 3-in-1 Forward-Facing Seat:
- Harness Mode: 22–65 lbs
- High-Back Booster: 40–100 lbs
- Backless Booster: 40–120 lbs
- SnugLock® Installation System: secure seat belt or LATCH install in under a minute
- No-Rethread Simply Safe Adjust™ Harness System
- 5-Position Adjustable Headrest
- Integrated Belt Positioning Guides
- Steel-Reinforced Frame
- Removable Body Insert + Seat Pad
- Dual Cup Holders
- Machine-Washable Fabric
- FAA Approved: harness mode only
Quick Tips from Parents
- Use SnugLock for quick and tight installations — listen for the click when the door locks
- Always use the top tether when in harness mode
- The harness must be at or above shoulders when forward-facing
- In booster mode, guide the seat belt through the red belt path — not under the arm
- Store the harness straps when switching to booster mode to avoid bulk
Frequently Asked Questions – Graco Nautilus SnugLock LX Manual
Harness Mode: 22–65 lbs, 27–49 inches
High-Back Booster: 40–100 lbs, 43–57 inches
Backless Booster: 40–120 lbs, 43–57 inches
SnugLock is a built-in tensioning system that helps you tighten the seat belt or LATCH installation. Just lift the SnugLock door, route the belt, buckle, tighten, and close the door until it clicks.
Switch when your child is over 65 lbs or has outgrown the harness height. They must also be mature enough to sit upright at all times in booster mode.
Yes — but only in harness mode. Booster mode requires a shoulder belt, which airplanes don’t have.
The seat pad is removable and machine-washable. Wash on cold gentle cycle and air dry. Do not bleach.
Need more help?
Still have questions? Ask in the comments — whether it’s about using SnugLock, switching modes, or cleaning the seat. We’re here to help!
